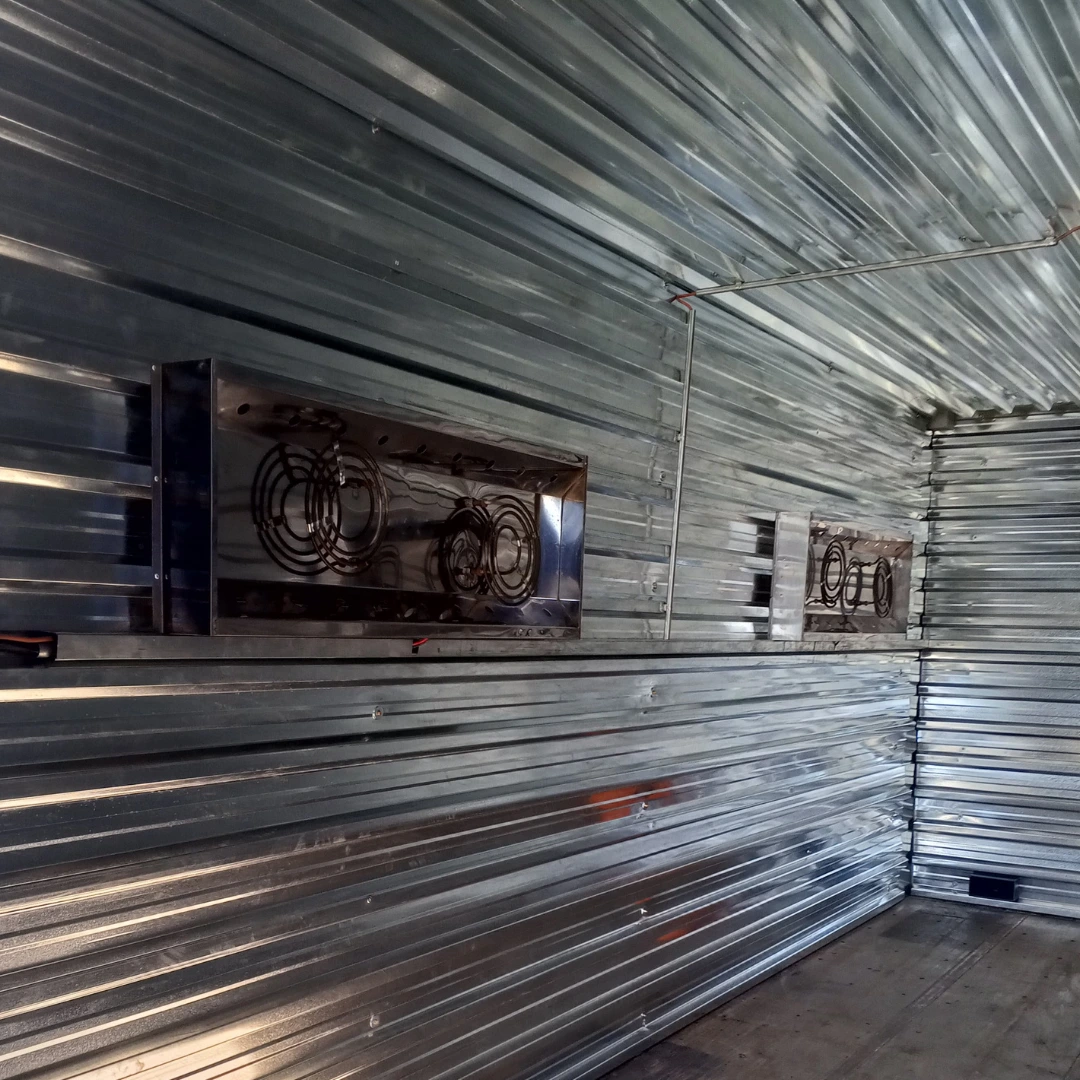

Transformer Heating Oven

Transformer Heating Oven – Precision Thermal Processing for Transformer Components

The Transformer Heating Oven is a high-performance industrial thermal chamber designed specifically for drying, curing, and preheating transformer components such as windings, cores, insulation materials, and transformer oil tanks. This system plays a critical role in the manufacturing, repair, and refurbishment of distribution and power transformers by eliminating moisture, enhancing insulation performance, and ensuring thermal stability prior to oil impregnation or final assembly.

Built with precise temperature control, uniform heat distribution, and safety-focused construction, our transformer ovens offer reliable and consistent thermal processing tailored to industry standards. Available in multiple sizes and configurations, these ovens support both batch and continuous heating processes.

Key Features – Transformer Heating Oven

• Temperature Range: Adjustable up to 250°C (or higher upon request)
• Heating Type: Electric, infrared, or thermal oil-based (customizable)
• Chamber Sizes: Standard and custom dimensions available for small to large transformer components
• Construction: Heavy-duty insulated steel with reinforced structural design

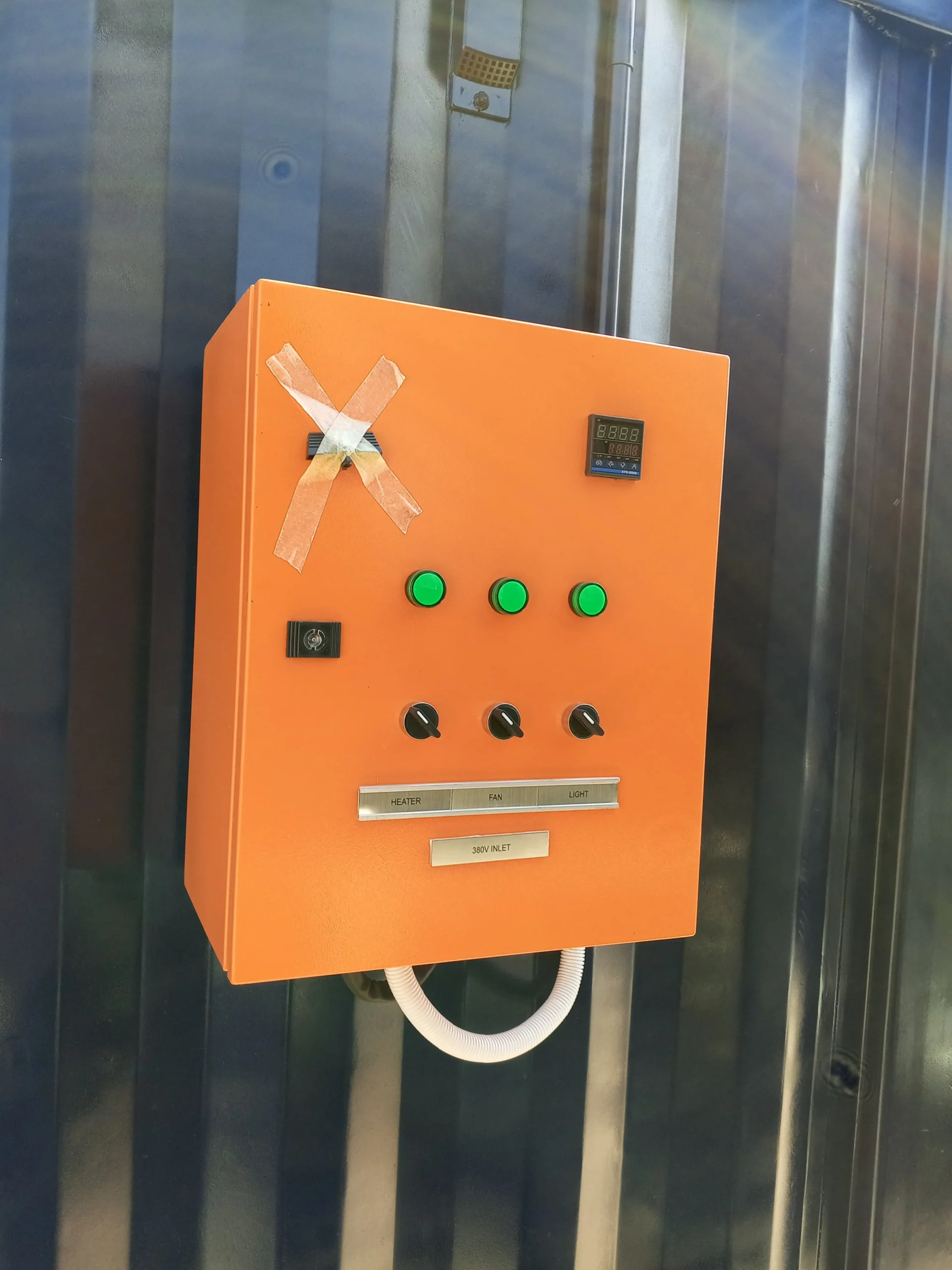

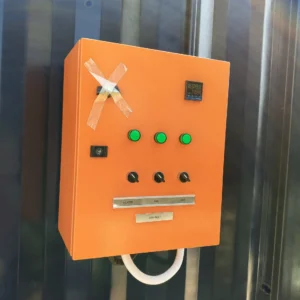

• Control System: Digital PID controller with programmable temperature profiles
• Uniform Heat Distribution: Multi-zone heating ensures consistent temperature throughout the chamber
• Safety Features: Over-temperature protection, auto-shutoff, emergency stop, and thermal insulation barriers
• Moisture Removal: Integrated ventilation or vacuum-assisted drying systems available
• Loading Options: Trolley, track, or gantry-type loading systems for safe and easy access
• Compliance: Manufactured to meet IEC, ISO, and relevant industrial safety standards

Benefits

• Improved Insulation Performance
  Effectively removes moisture from windings and insulation materials to reduce dielectric losses.
• Enhanced Transformer Reliability
  Minimizes the risk of partial discharge and insulation breakdown after assembly.
• Custom-Built for Transformer Fabrication
  Purpose-designed chambers accommodate full cores, coils, and tank assemblies.
• Consistent, Repeatable Results
  Advanced temperature control systems allow for programmable thermal cycles and batch repeatability.
• Energy Efficient Design
  Optimized insulation and heat control minimize energy consumption and operational cost.
• Versatile & Scalable
  Suitable for OEM transformer production, repair workshops, and high-volume refurbishing operations.

Applications

• Transformer manufacturing facilities
• Repair and refurbishment workshops
• Power utility service centers
• OEM production lines for dry-type and oil-immersed transformers
• Thermal treatment of cores, coils, and insulation materials
