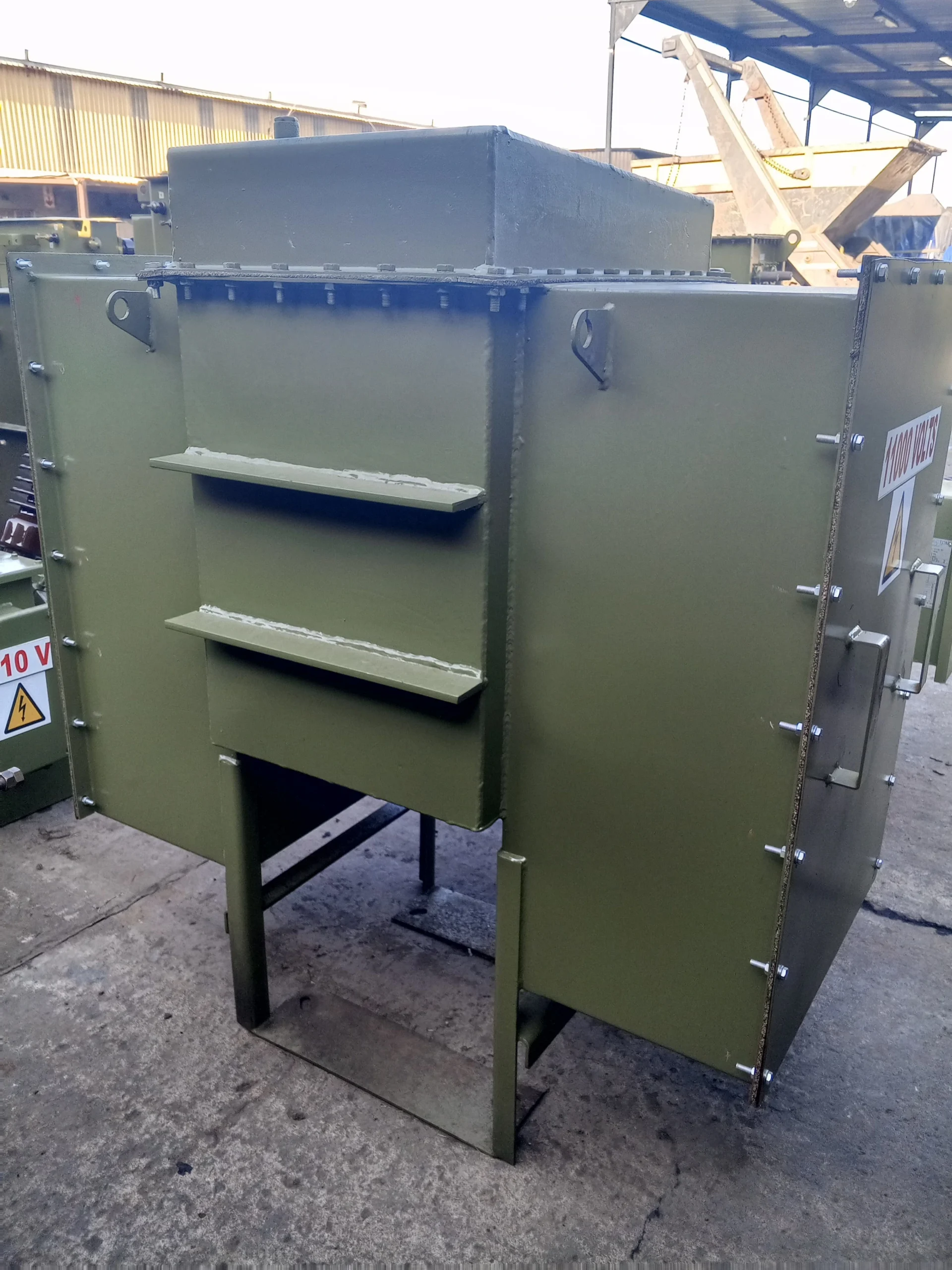

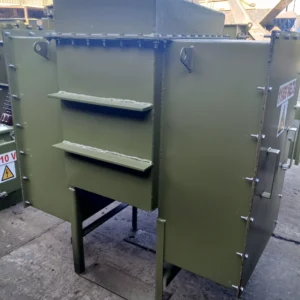

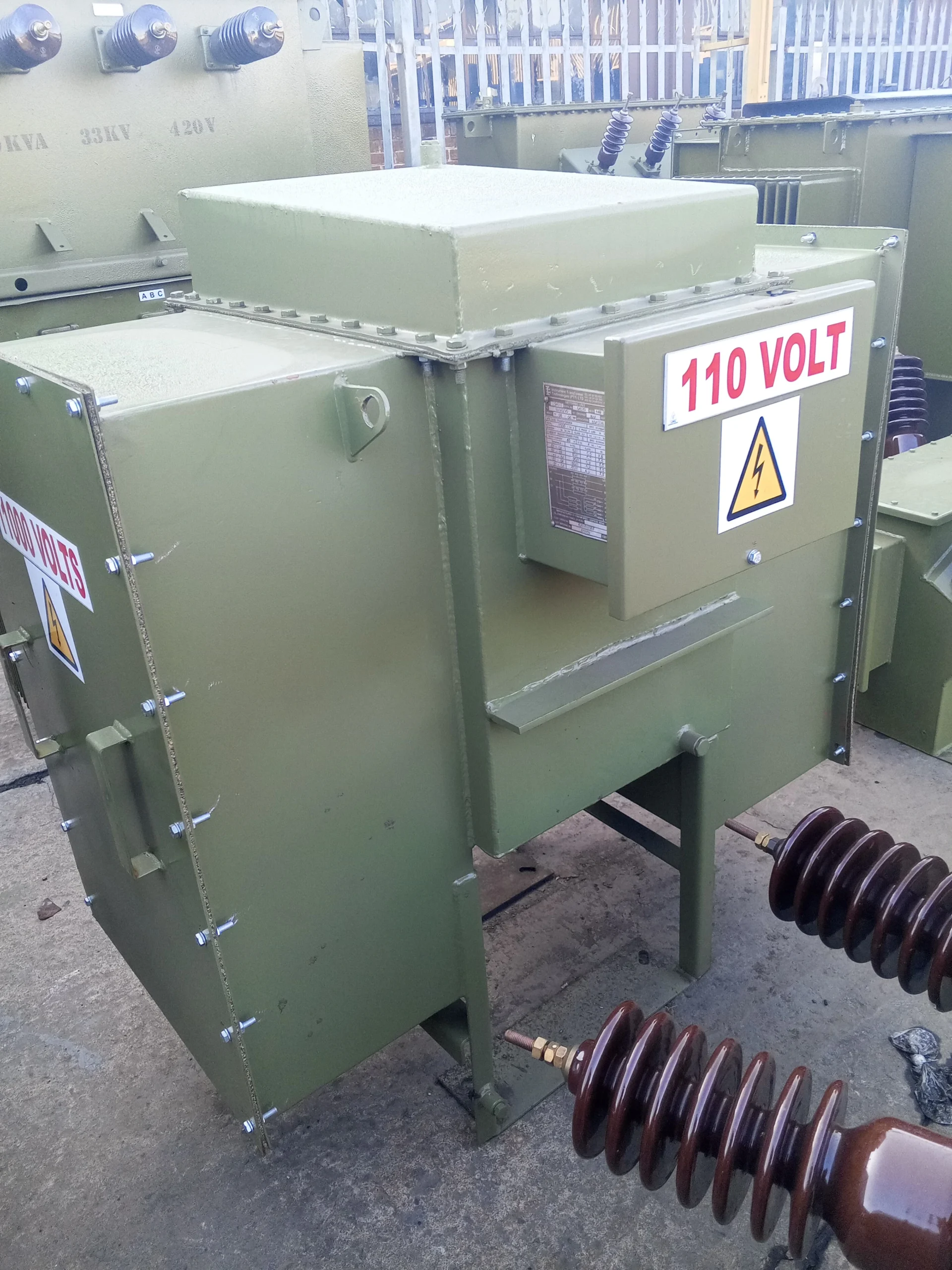

11000 110v Metering Unit

11000 110v Metering Unit – Precision Power Measurement for Medium-Voltage Networks

The 11000 110v Metering Unit is a utility-grade, outdoor-rated metering solution designed for precise energy measurement in 11kV distribution systems. Engineered for accuracy, durability, and full compliance with international standards, this metering unit integrates high-accuracy voltage and current transformers into a compact, weatherproof enclosure. It is ideal for revenue metering, load monitoring, and grid performance analysis, providing reliable and precise power measurement for medium-voltage networks in utilities, industrial facilities, and renewable energy installations.

With a standard 110V secondary output, the unit easily interfaces with SCADA, AMR systems, protective relays, and billing meters, ensuring accurate energy accounting across medium-voltage networks while supporting advanced monitoring and operational control.

Key Features

• Rated for 11,000 kVA / 11kV Applications
  • Perfect for substations, industrial networks, and utility distribution points.
• High-Accuracy CTs & VTs
  • Class 0.2S or Class 0.5 performance for revenue-grade precision.
• Standard 110V Secondary Output
  • Compatible with metering devices, protection relays, and control systems.
• Weatherproof IP55–IP65 Enclosure
  • Ensures long-term durability in industrial and outdoor environments.
• Oil-Immersed or Dry-Type Construction
  • Choose low-maintenance dry-type or long-life oil-immersed insulation.
• Factory-Calibrated & Type-Tested
  • Meets IEC 61869, SANS, and utility standards for legal metering.
• Compact & Modular Design
  • Easy installation on kiosks, plinths, or pole-mount structures.
• SCADA-Ready (Optional)
  • Upgrade with Modbus or IEC 61850 communication modules for remote integration.

Benefits of the 11000 110v Metering Unit

• Utility-Grade Energy Billing
  Provides highly accurate power flow and consumption data.

• Improved Grid Stability
  Supports load management and real-time grid visibility.

• Reduces Energy Losses
  Helps detect inefficiencies and load imbalances.

• Long Operational Lifetime
  Built to withstand harsh climates and high electrical stress.

• Easy Integration
  Plug-and-play terminals simplify installation in new or existing systems.

• Fully Compliant
  Meets legal and technical requirements for revenue metering.

Applications for the 11000 110v Metering Unit

• Utility substations

• IPP (Independent Power Producer) metering

• Renewable energy monitoring (solar/wind)

• Industrial and mining energy auditing

• Grid interface and interconnect points
